Micro Systems is forward thinking and making advances in micro and nano manufacturing processes. We utilise many ground breaking techniques to solve complex micro manufacturing problems and significant progress is being made as we move from micro to nano manufacturing.
Some of our Mould Manufacture and Injection Moulding Examples.
Medical Device

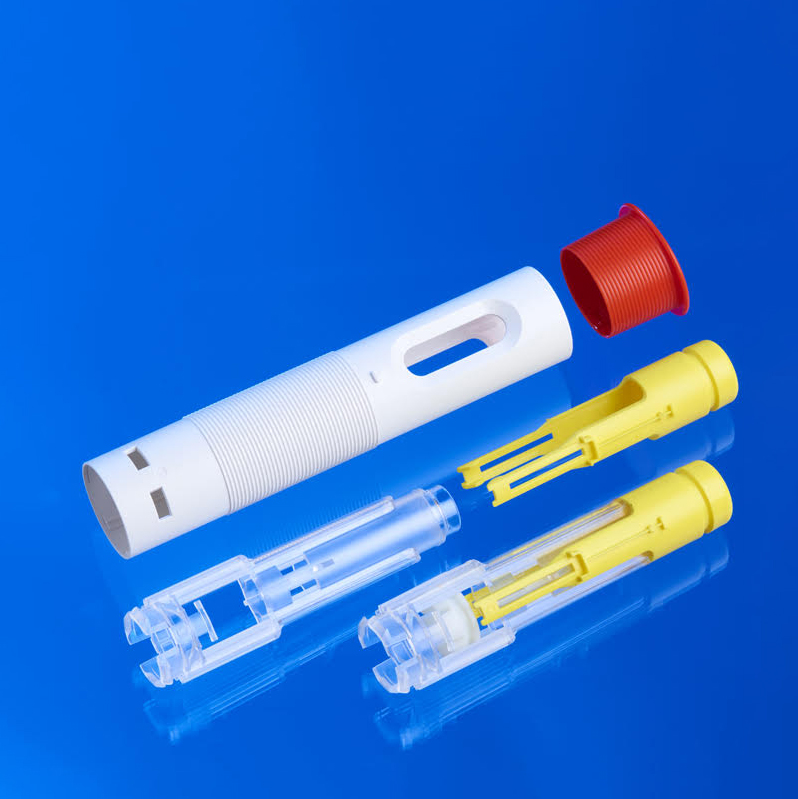

- Drug delivery system: micro needle, injector pen, auto injector pen, soft mist inhaler, etc.
- Medical Micro: PEEK Bone Implants
- Surgical components.
- Other customized medical device applications as required.
 |
 |
 |

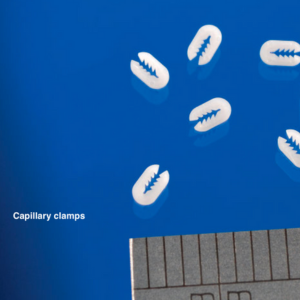

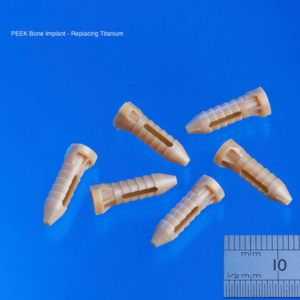

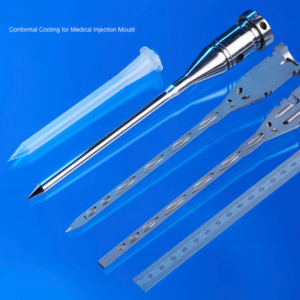

| PEEK bone implants | Conformal Cooling | Capillary clamps |
 |
 |
 |

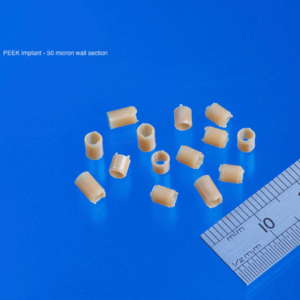

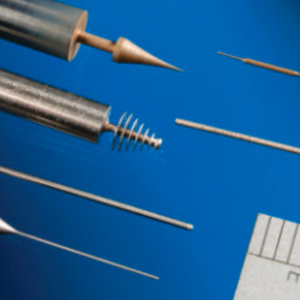

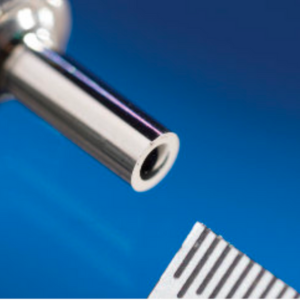

| Ultra-precision tool | Ultra-precision tool | PEEK implant |
Diagnostic Device – Microfluidics
- Filtration, Mixing, Droplet Generation features
- Low, Medium, High-Volume production moulding
- Optical chambers < 20nm Ra
- 10-50 micron typical feature size, 0.5 micron repeatable accuracy
 |
 |
 |

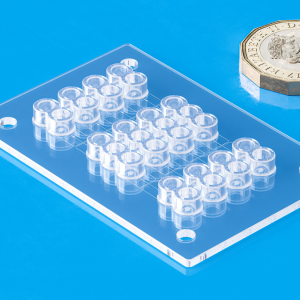

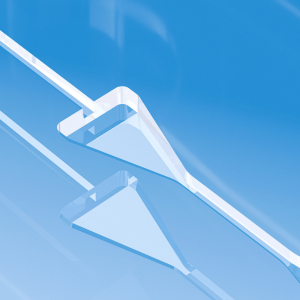

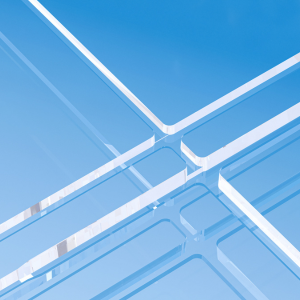

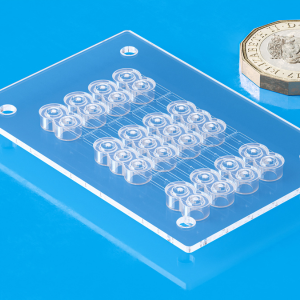

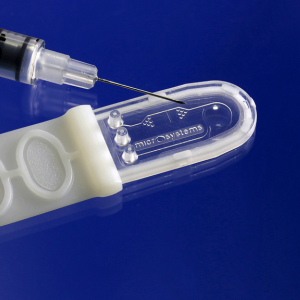

| Microfluidic chip | Microfluidic chip | Microfluidic chip |
 |
 |
 |

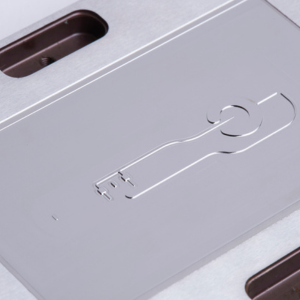

| Microfluidic chip | Microfluidic chip mould | Microfluidic chip |
Medical Mould Design & Manufacture
- Single Cavity Prototype
- 2-4 Cavity Pre-production moulds
- 8-32 Cavity Full Production moulds
- 2 material moulds
- Micro moulds
 |
 |
 |

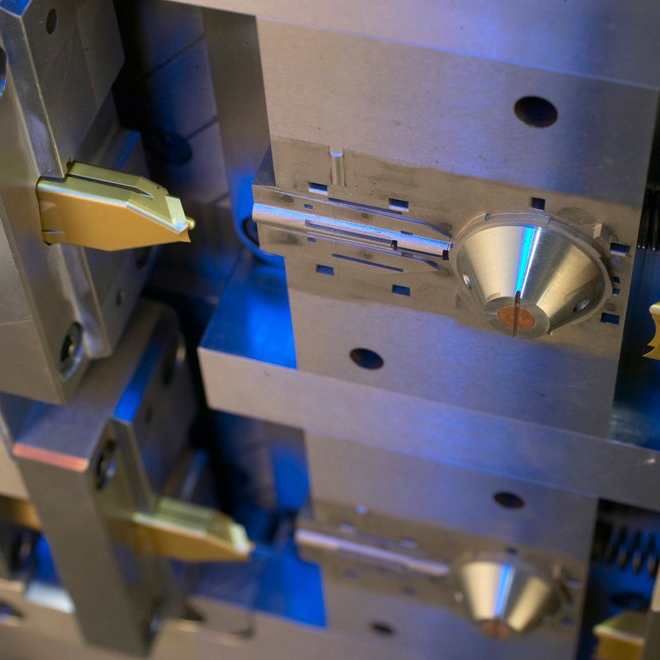

| Medical Mould | Multiple cavity mould | Ultra-precision mould |
 |
 |
 |

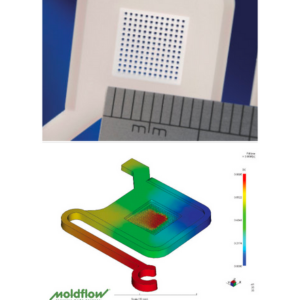

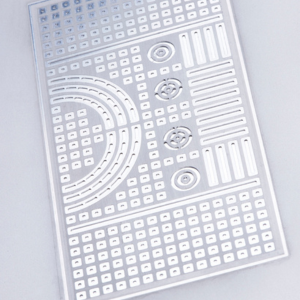

| Medical Mould | Micro Mould | Mould Design to Manufacture |
Contact us to discuss your Medical Mould Design, Mould Manufacture and Injection Moulding projects!
