Dimensional Stability in Medical Micro Moulding: Controlling Shrink and Warpage

What Is Dimensional Stability in Medical Micro Moulding?

Dimensional stability in medical Micro Moulding refers to the ability of a component to maintain its intended geometry, tolerances, and functional performance during and after moulding. It is critical for microfluidic devices, minimally invasive surgical tools, and implantable components, where tolerances often fall below ±5 µm [1].

Why Do Shrinkage and Warpage Occur in Medical Micro Moulding?

Shrinkage occurs due to polymer volume contraction during cooling and solidification [2]. Warpage results from differential shrinkage caused by non-uniform thermal distribution, polymer flow orientation, or asymmetric geometry [3][4]. Both defects compromise dimensional accuracy, potentially leading to device malfunction or regulatory non-compliance [5].

How to Control Shrinkage in Medical Micro Moulding?

To minimise shrinkage in medical-grade polymers:

1. Select low-shrinkage materials such as COC or polycarbonate for diagnostic and optical applications [6].
2. For high-strength or implantable devices using PEEK or PP, implement annealing or post-mould heat treatment to stabilise dimensions [7][8].
3. Optimise packing pressure and cooling rates to achieve uniform polymer density throughout the component.

How to Prevent Warpage in Micro Medical Devices?

Warpage can be reduced by:

• Maintaining uniform wall thickness across critical areas [9].
• Incorporating fillets and smooth transitions to avoid stress concentrations [10].
• Using ribs or gussets for reinforcement without introducing localised cooling imbalances [11].
• Integrating conformal cooling systems that provide even temperature distribution [12][13].

Role of Conformal Cooling in Medical Micro Moulding

Conformal cooling channels, often produced using additive manufacturing, closely follow the geometry of the medical component. This improves heat transfer efficiency, reduces cycle time, and prevents differential cooling, a key cause of shrinkage and warpage in precision moulded parts [12][13].

Simulation and Process Control for Dimensional Stability

Mould-flow simulations predict potential shrinkage hotspots, pressure imbalances, and warpage-prone zones before tool fabrication [14].

• The most critical parameter for warpage reduction is mould temperature, followed by packing pressure and holding time [15].
• Statistical process control (SPC) and real-time cavity pressure monitoring ensure repeatable production under ISO 13485 and FDA 21 CFR Part 11 requirements [16].

Dimensional Verification in Medical Micro Moulding

High-precision metrology methods, such as optical profilometry, SEM, and confocal microscopy, are essential for validating micro-scale components without compromising sterility. These techniques are integrated into Gage R&R and IQ/OQ/PQ protocols during process validation [17].

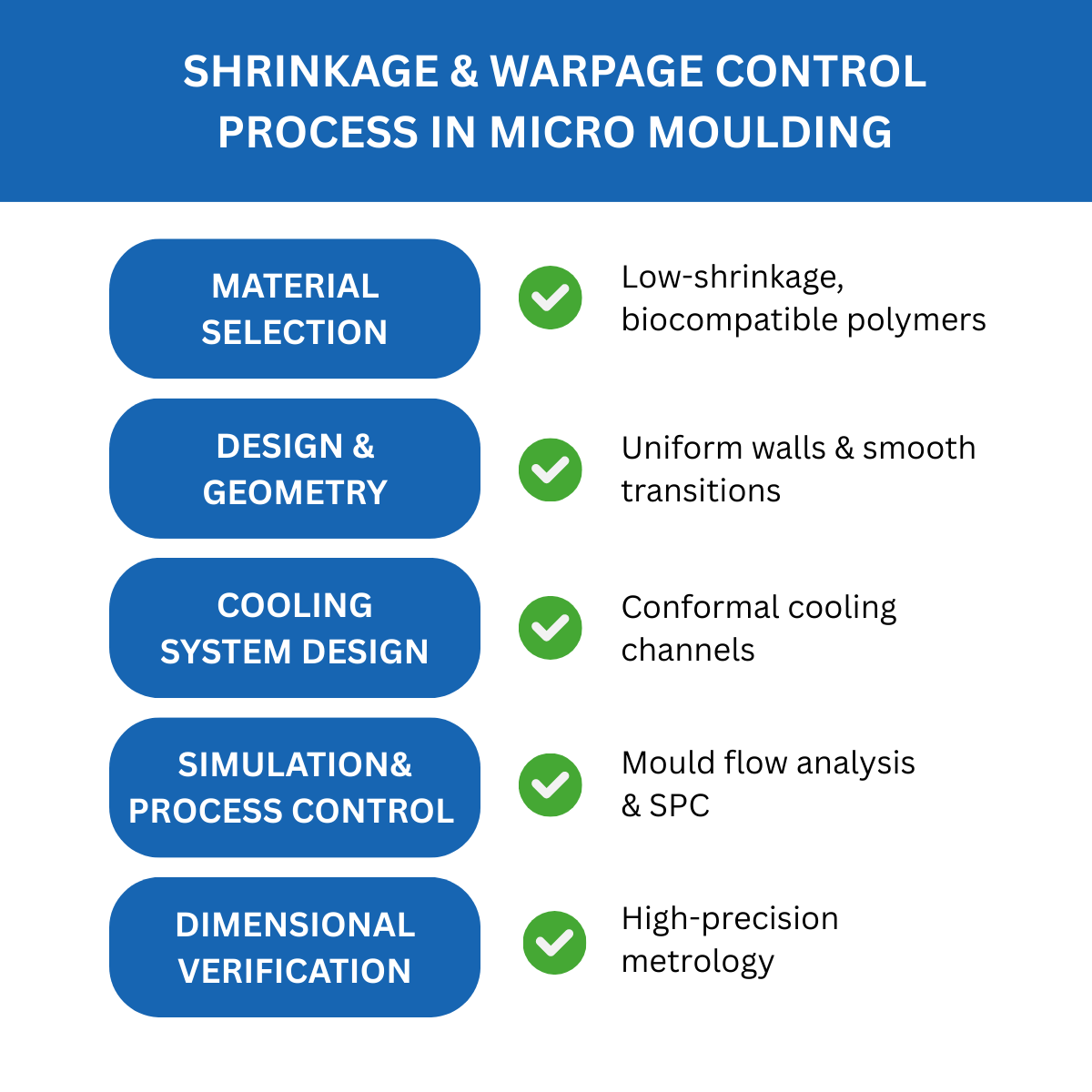

Quick Answer: How to Reduce Shrinkage and Warpage in Medical Micro Moulding?

• Choose biocompatible low-shrinkage materials.
• Design for uniform wall thickness and smooth transitions.
• Implement conformal cooling systems.
• Optimise mould temperature, packing pressure, and holding time.
• Validate with real-time process monitoring and precision metrology.

Micro Systems’ Capabilities in Medical Micro Moulding

Micro Systems offers ultra-precision Micro Moulding solutions for the medical sector, including sub-micron tooling tolerances, validated conformal cooling, and GMP-compliant ISO Class 7 cleanroom production. Their expertise in high-aspect-ratio components ensures minimal shrinkage and warpage in high-volume, regulatory-controlled environments.

FAQ: Dimensional Stability in Medical Micro Moulding

Q: What materials are best for low-shrinkage medical Micro Moulding?
A: COC, COP, and polycarbonate for diagnostics; PEEK for implants with post-mould annealing.

Q: Can conformal cooling really reduce warpage?
A: Yes, it provides uniform thermal management, reducing internal stress gradients that cause warpage.

Q: What tolerances can be achieved in medical Micro Moulding?
A: Sub-micron to ±5 µm tolerances are achievable with validated tooling and process control.

Q: Is process validation mandatory for medical Micro Moulding?
A: Yes, under ISO 13485 and FDA requirements, IQ/OQ/PQ validation ensures repeatable dimensional stability.
